Frame Shaker Screen

Frame shaker Screen

Standard

SY/T5612-2007

Anping Web Wire Mesh Co.Ltd. Shaker Screen Process and Technical Parameters

Brief description of frame shaker screen

Frame shaker screen, is made of 2 to 3 layers 16-325 mesh stainless steel wire mesh and frame. The frame is welded by high strength square pipe or flat plate with many support bars, stainless steel wire mesh is adhere to metal plate. For its high strength frame, support bars and screen mesh, enhance withstand flow rate, strength and service life of the shaker screen.

Material

Stainless steel : 304, 304L, 316, 316L

Grade	Characteristics
304	The standard "18-8" stainless steel. It offers good tensile strength and basic wear resistance, making it suitable for conventional onshore drilling and low-corrosive water-based mud environments. It serves as an economic choice for standard solids control operations.
304L	A low-carbon version of 304. The lower carbon content provides better wire flexibility for precision weaving and significantly improves welding characteristics when bonding the mesh to screen frames or backings, effectively preventing premature joint cracking under intense mechanical vibration.
316	Molybdenum-bearing stainless steel that offers superior resistance to pitting and crevice corrosion from high-salinity drilling fluids, brines, and corrosive oil-based muds. It features high fatigue strength under continuous cyclic stress, making it ideal for demanding drilling conditions and offshore applications.
316L	The premium grade for high-performance shaker screens. It combines the excellent corrosion resistance of 316 with the advantages of low carbon. It provides optimal wire flexibility and eliminates the risk of intergranular corrosion after welding, ensuring the longest operational screen life under harsh, high-vibration, and highly corrosive conditions.

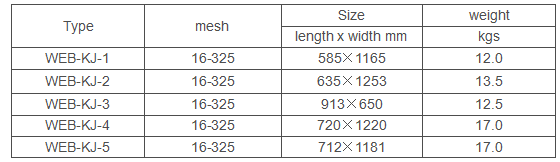

Frame shaker screen technical parameter

Frame shaker screen application

Horizontal directional drilling: oil & gas exploration,water bore drilling,geotechnical engineering & boring

Mineral processing: coal preparation & washing,metal ore beneficiation,mineral recovery,mine tailings dewatering

Agricultural processing:grain & cereal screening,livestock waste separation,irrigation water filtration,topsoil conditioning & reclamation

Environmental waste: effluent & sewage treatment,sludge dewatering,soil remediation

Quarrying & aggregates: sand & gravel classification,crushed rock & ballast,particle sizing

Liquid-solids separation:sludge & slurry dewatering,wastewater solids removal,municipal sewage dewatering

Frame shaker screen packing

Shaker screen should be packed firmly and securely. When packing, shaker screen are appears in pieces.They are wrapped with plastic bags or plastic films inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
