DownloadFlat Shaker Screen
Type: flat screen
Material: stainless steel 304, 304L, 316, 316L
Layer: 2 layers,3 layers
Mesh: 16-325mesh
Size: 697×846,700×1165,915×1150,1186×1280,1212×1141mm
Application: Drilling operations
Flat Shaker Screen
Standard
SY/T5612-2007
Anping Web Wire Mesh Co.Ltd. Shaker Screen Process and Technical Parameters
Brief description of flat shaker screen
Flat shaker screen, is made of 2 to 3 layers 16-325 mesh stainless steel wire mesh and metal plate, after combination and bonding, it can be used in drilling operation for solid-liquid separator or filter. The longest service life of the screen is 720 hours, for it’s acid and alkali-resistance,high temperature resistance, easy to disassemble, large effective area and high throughput.
Material
Stainless steel : 304, 304L, 316, 316L
Grade
Characteristics
304
The standard "18-8" stainless steel. It offers good tensile strength and basic wear resistance, making it suitable for conventional onshore drilling and low-corrosive water-based mud environments. It serves as an economic choice for standard solids control operations.
304L
A low-carbon version of 304. The lower carbon content provides better wire flexibility for precision weaving and significantly improves welding characteristics when bonding the mesh to screen frames or backings, effectively preventing premature joint cracking under intense mechanical vibration.
316
Molybdenum-bearing stainless steel that offers superior resistance to pitting and crevice corrosion from high-salinity drilling fluids, brines, and corrosive oil-based muds. It features high fatigue strength under continuous cyclic stress, making it ideal for demanding drilling conditions and offshore applications.
316L
The premium grade for high-performance shaker screens. It combines the excellent corrosion resistance of 316 with the advantages of low carbon. It provides optimal wire flexibility and eliminates the risk of intergranular corrosion after welding, ensuring the longest operational screen life under harsh, high-vibration, and highly corrosive conditions.

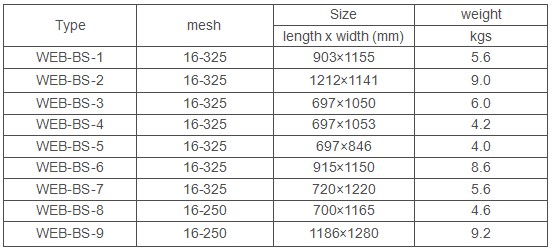

Flat shaker screen technical parameter
Flat shaker screen application
Horizontal directional drilling: oil & gas exploration,water bore drilling,geotechnical engineering & boring
Mineral processing: coal preparation & washing,metal ore beneficiation,mineral recovery,mine tailings dewatering
Agricultural processing:grain & cereal screening,livestock waste separation,irrigation water filtration,topsoil conditioning & reclamation
Environmental waste: effluent & sewage treatment,sludge dewatering,soil remediation
Quarrying & aggregates: sand & gravel classification,crushed rock & ballast,particle sizing
Liquid-solids separation:sludge & slurry dewatering,wastewater solids removal,municipal sewage dewatering
Packing
Shaker screen should be packed firmly and securely. When packing, shaker screen are appears in pieces.They are wrapped with plastic bags or plastic films inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
