30 mesh nickel wire mesh

30 mesh plain weave nickel wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 30 mesh nickel wire mesh

30 mesh plain weave nickel wire mesh including 30 wires and openings of 1 inch Using 0.12-0.35mm diameter wire, by plain weaving, woven 30 mesh opening for 0.4-0.7mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

Pure nickel: N2 N4 N6

Nichrome: Cr20Ni80

Grade	Characteristics
N2	Ultra-High Purity Nickel (≥99.98%): Exceptionally soft and ductile, making it the premier choice for weaving ultra-fine, precise mesh counts without wire breakage. Due to its extreme purity, it prevents chemical contamination, making it ideal for semiconductor manufacturing, specialized electronics, and laboratory-grade chemical filtration.
N4	Low-Carbon Pure Nickel (≥99.9): Specifically formulated with a low carbon content (max 0.02%) to prevent graphitization and embrittlement at high temperatures (above 315°C / 600°F). It maintains excellent wire flexibility, tensile strength, and structural integrity during high-heat operation. Highly resistant to caustic alkalis.
N6	Commercial Pure Nickel (≥99.5%): The most cost-effective grade for general industrial nickel wire mesh. It offers high mechanical strength, good weaveability, and outstanding resistance to corrosion by caustic sodas across various temperatures and concentrations. Widely used in chemical processing and hydrogen production electrolyzers.
Cr20Ni80	Nichrome Alloy (80% Nickel / 20% Chromium): It is stiffer than pure nickel, so the woven mesh keeps its shape perfectly and does not stretch easily. When heated up to 1150°C, it forms a protective skin that stops the wire joints from melting together or cracking. Ideal for heat-treatment furnace mesh, catalyst supports, and high-temperature gas filtration

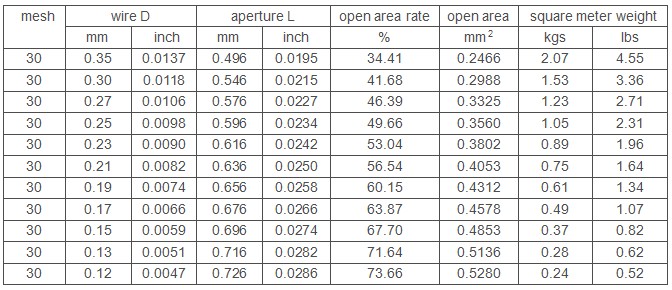

30 mesh nickel wire mesh technical parameter

roll width: 1.0-1.5m

roll length: 30m

30 mesh nickel wire mesh application

Hydrogen production &alkaline electrolyzers: alkaline electrolyzer mesh electrodes, anion exchange membrane substrates,hydrogen current collectors, electrochemical cell grids,anode support,fluid diffusion mesh

Chemical processing: alkali-resistant strainer elements,  gas filter packs,pipeline filter packs,processing line intake strainers,pre-filtration screens,fluid strainers

Safety vents:  safety vent screens, pipeline mesh packs, inline gas barriers,industrial micro-debris barriers

30 mesh plain weave nickel wire mesh packing

Nickel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
