150 mesh twill weave stainless steel wire mesh

150 mesh twill weave stainless steel wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Twill Weave Process and Technical Parameter

Brief description of 150 mesh twill weave stainless steel wire mesh

150 mesh twill weave stainless steel wire mesh including 150 wires and openings of 1 inch Using 0.06-0.08mm diameter wire, by twill weaving, woven 150 mesh opening for 0.089-0.109mm solid particles , it can also be used as a liquid or gas fine filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better

Material

200 series : 201 202 205

300 series : 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series : 410 420 430

Common Grade	Characteristics
304	The standard "18-8" alloy (18% Cr, 8% Ni) for woven wire cloth. It resists outdoor rusting and high-temperature oxidation up to 800°C. Widely used for general industrial, commercial, and domestic mesh.
304L	A low-carbon version of 304. The lower carbon content makes the wire softer for easier weaving and significantly improves its welding characteristics.
316	Offers superior resistance to pitting corrosion from chlorides, brines, and halogens compared to 304. It features high creep strength at high temperatures and excellent durability at sub-zero temperatures. Widely used for chemical processing mesh.
316L	A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.
321	A titanium-stabilized version of 304. It resists intergranular corrosion and maintains higher strength at extreme temperatures where 304 or 304L would fail. Welded 321 should not be used in highly oxidizing environments.

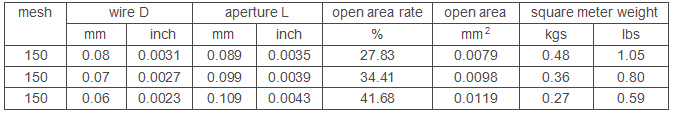

150 mesh twill weave stainless steel wire mesh technical parameter

roll width: 1.0-4.0m

roll length: 30m

150 mesh twill weave stainless steel wire mesh application

Sifting & laboratory grading: pearl powder,sifting powders, sieves, laboratories, pharmaceutical powder sifting mesh , shaker screen replacements,flour machine screening,filtering fluids dregs, tea water

Fluid filtration:particle filter,inline pipeline strainer inserts,inline Y-strainer mesh liners,multi-layer spot-welded filter discs,Hydraulic Filters

Petroleum chemical : refining pipeline filter packs, micro-particulate strainers, crude oil inline strainer elements

Automotive industry: fuel injector strainers, hydraulic valve screen inserts, filter discs, micro-fluidic filters,fuel line inline filter elements

150 mesh twill weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
