120 mesh twill weave stainless steel wire mesh

120 mesh twill weave stainless steel wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Twill Weave Process and Technical Parameter

Brief description of 120 mesh twill weave stainless steel wire mesh

120 mesh twill weave stainless steel wire mesh including 120 wires and openings of 1 inch Using 0.08-0.12mm diameter wire, by twill weaving, woven 120 mesh opening for 0.09-0.13mm solid particles , it can also be used as a liquid or gas fine filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better

Material

200 series : 201 202 205

300 series : 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series : 410 420 430

Common Grade	Characteristics
304	The standard "18-8" alloy (18% Cr, 8% Ni) for woven wire cloth. It resists outdoor rusting and high-temperature oxidation up to 800°C. Widely used for general industrial, commercial, and domestic mesh.
304L	A low-carbon version of 304. The lower carbon content makes the wire softer for easier weaving and significantly improves its welding characteristics.
316	Offers superior resistance to pitting corrosion from chlorides, brines, and halogens compared to 304. It features high creep strength at high temperatures and excellent durability at sub-zero temperatures. Widely used for chemical processing mesh.
316L	A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.
321	A titanium-stabilized version of 304. It resists intergranular corrosion and maintains higher strength at extreme temperatures where 304 or 304L would fail. Welded 321 should not be used in highly oxidizing environments.

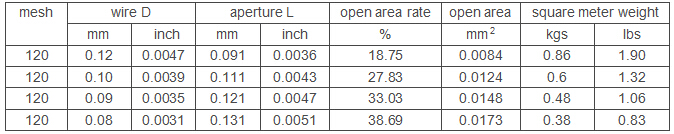

120 mesh twill weave stainless steel wire mesh technical parameter

roll width: 1.0-4.0m

roll length: 30m

120 mesh twill weave stainless steel wire mesh application

Sifting & laboratory grading: sifting powders, sieves, sifting and mixing chemicals, laboratories, calibrated chemical grading screens , pharmaceutical powder sifting mesh , analytical dry-sieving media,vibratory sieve shaker screen replacements,laboratory analytical test sieve inserts

Fluid filtration & micro-straining：particle filter, strainers, laboratories and filters,fluid filter discs , inline pipeline strainer inserts ,hydraulic fluid conditioning mesh, macro-particulate filtration media,inline Y-strainer mesh liners,multi-layer spot-welded filter discs,oil micro-particulate straining elements,industrial water intake coarse clarification screens

Abrasive grain & sandpaper media classification：grinding material mesh, quartz sand paper material selection, quartz mineral processing vibrating screen decks,grinding material classification cloth

EMI/RFI shielding & signal isolation：shielding mesh, EMI and RFI shielding, RF attenuation screens, Faraday cage, electronic enclosure signal suppression cloth,server room ventilation shielding panels,military shelter signal isolation grilles ,

Food processing: juice strainer,chocolate filtration,spice and flour sifting,sugar clarification filter,dairy processing elements,beverage squeeze-press liners

Automotive process:fuel micro-filter inserts, oil filtration grids, suction strainer liners,intake screens,oil filter discs

Petroleum chemical : refining pipeline filter packs, micro-particulate strainers, crude oil inline strainer elements,vent intake grids

120 mesh twill weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
