Brief Description of 219mm Diameter Wedge Wire Screen Tube

The 219mm diameter wedge wire screen tube is a high-precision filtration component manufactured by WEB WIRE MESH.

219mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

219mm Diameter Wedge Wire Screen Tube Technical Parameter

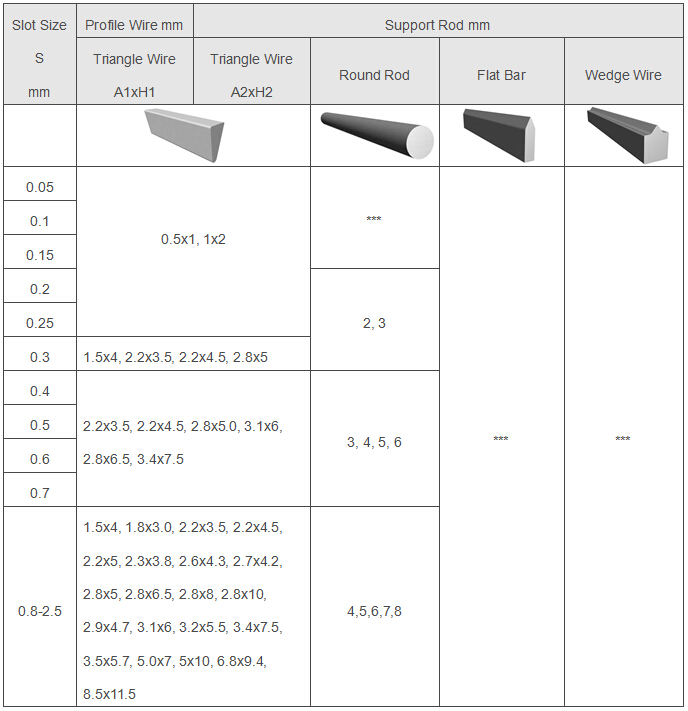

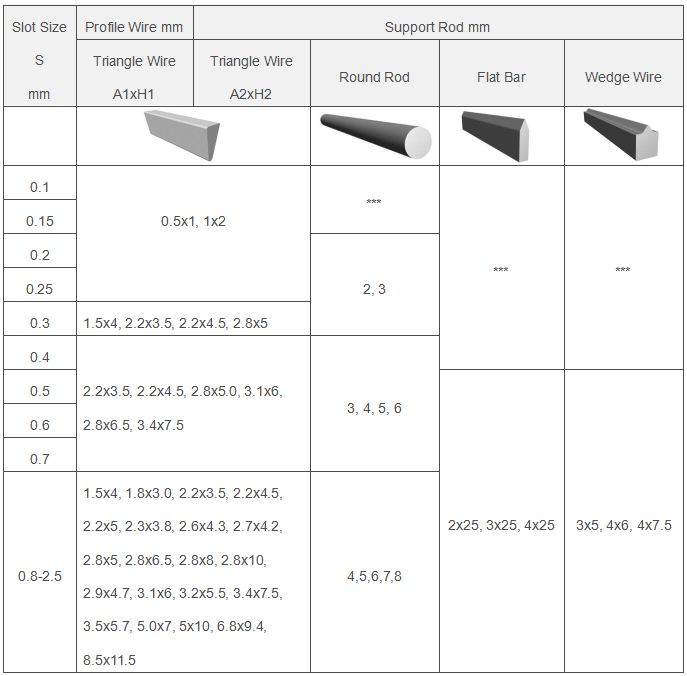

For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

round rod,flat bar,wedge wire.

The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m,12m.

Note

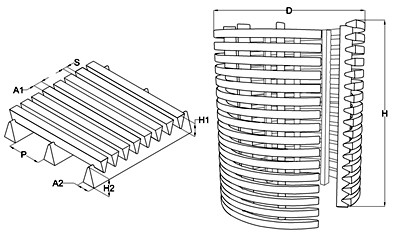

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

Wedge Wire Screen Tube Ending Types

To accommodate various installations and equipment connections, our wedge wire screen tubes can be customized with multiple ending types, including but not limited to:

Standard Cut Ends

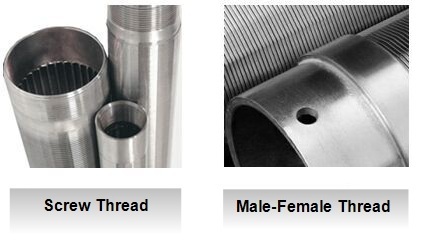

Threaded Nipple / Fittings (Male & Female)

Flanged Ends

Closed Ends / End Caps

219mm Diameter Wedge Wire Screen Tube Application

Deep Well,Wells and Oil Wells,Oil and Water Reservation

Oil Tubing,Sand Control Screen,Oil and Gas Filtration,Water Intake Screen

Chemical and Petrochemical Processing: Center Pipes, Outer Baskets, Resin Traps

Food and Beverage : Pressure Sieves and Wash-Baskets, Rotary Drum Elements

Why Choose V-Shaped Profile Wire

Non-Clogging Design: The V-shaped profile cross-section creates a slot that is narrow at the top and

wider at the bottom. This geometric design allows particles to pass through easily, drastically

reducing clogging and ensuring a smooth, uninterrupted filtration process.

Durability: Delivers exceptional wear and corrosion resistance for demanding industrial environments.
