159mm Diameter Wedge Wire Screen Tube

159mm Diameter Wedge Wire Screen Tube

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief Description of 159mm Diameter Wedge Wire Screen Tube

The 159mm diameter wedge wire screen tube is a high-precision filtration component manufactured by WEB WIRE MESH.

159mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

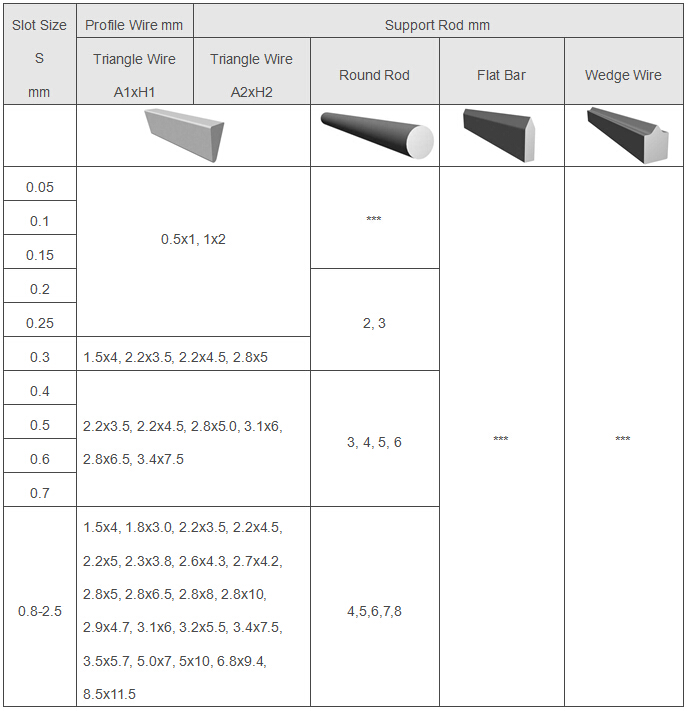

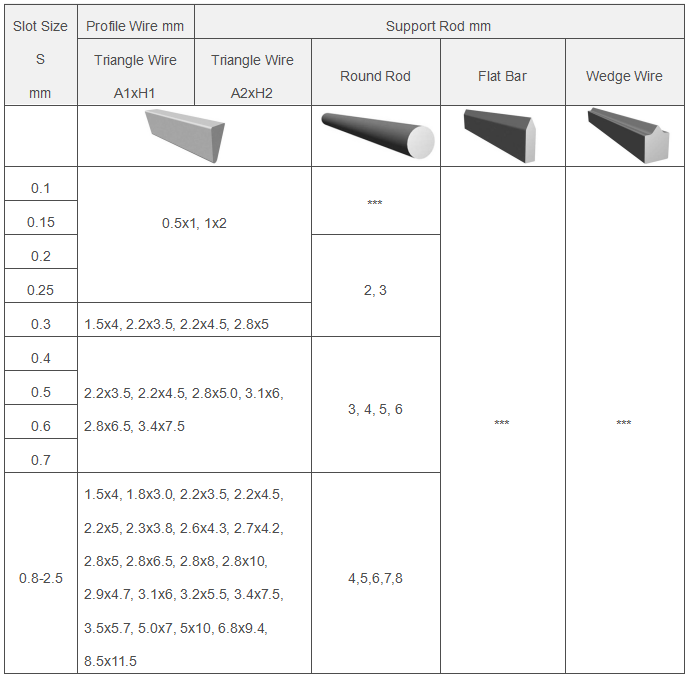

159mm Diameter Wedge Wire Screen Tube Technical Parameter

For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

round rod

The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m.

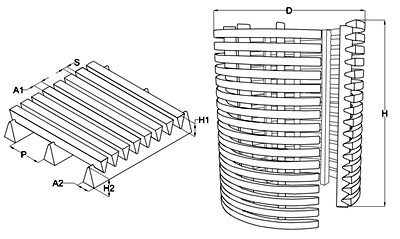

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod.

Support Rod Distance (P): The distance between each support rod.

Wedge Wire Screen Tube Ending Types

To accommodate various installations and equipment connections, our wedge wire screen tubes can be customized with multiple ending types, including but not limited to:

Standard Cut Ends

Threaded Nipple / Fittings (Male & Female)

Flanged Ends

Closed Ends / End Caps

159mm Diameter Wedge Wire Screen Tube Application

Deep Well Pump: Deep Well Sand Control Screens, Water Well Completion & Casing

Water Pump: Water Treatment Underdrain Systems,Media Retention & Strainers,Surface Water Intake Screens

Environmental Protection: Wastewater Filtration,Screw Presses or Rotary Screens

Oil Industry: Downhole Sand Control screens, Reactor Internals Center Pipes, Outer Baskets

Tap Water Processing: Surface Water Intake Screens

Food & Beverage Brewery: Lauter Tun & Mash Tun Screens

Juice and Sugar Extraction: Rotating Trommels and Pressurized Filters

Chemical Processing: Resin Traps, Distribution or Collection Pipe

Packing

Wedge wire screen tube should be packed firmly and securely. When packing, wedge wire screen tube appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
