3x16mm slot hole perforated metal

3x16mm slot hole perforated metal mesh

Standard

GB/T 12620-2008

Anping Web Wire Mesh Co.Ltd. Perforated Metal Mesh Process and Technical Parameters

Brief description of 3x16mm slot hole perforated metal

3x16mm slot hole perforated metal mesh is made of metal plate match 3x16mm aperture punching die, by CNC punch pressing, cutting, slicing, leveling, grease, deburring, and surface treatment processes of roll or sheet mesh. We have 14 complete production lines and advanced numerical equipment, it will be combinations of different material, pitch and opening rate,to produce more specifications mesh,it is widely used in audio, air vents, decoration, filtering fields.

Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel : Q195, Q215, Q235

Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5

Aluminum: 1050, 5052, 5056

Surface Treatment

Stainless steel: polished finish

Steel: galvanization(electroplating,hot-dip), PVC coated

Aluminum: anodizing, spray paint, powder coated

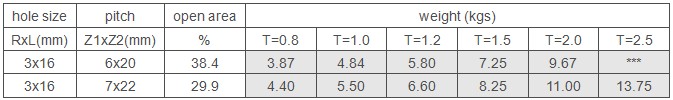

3x16mm slot hole perforated metal technical parameter

Slot hole round ends Z staggered

Slot hole round ends 90° straight

Size:1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m

Note:

L,R stand for opening size

Z1,Z2 stand for center to center distance

T stands for mesh thickness

Open area % is the total area of the holes divided by the total area of the sheet and is expressed

as a percent.

The weight is calculated according to stainless steel,stainless steel density is 7.93g/cm³,

copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

3x16mm slot hole perforated metal application

Speaker grilles

Decorative

Filter

Air vents

Test Sieve

Furniture

Sound absorption

Packing

Perforated metal should be packed firmly and securely. When packing, perforated metal appears in roll type and flat type. They are packed in wooden pallets generally. Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
