22 mesh monel wire mesh

22 mesh plain weave monel wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 22 mesh monel wire mesh

22 mesh plain weave monel wire mesh including 22 wires and openings of 1 inch Using 0.15-0.40mm diameter wire, by plain weaving, woven 22 mesh opening for 0.7-1.0mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

Monel 400

Monel 600

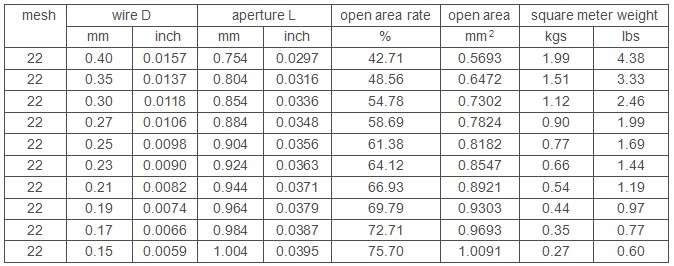

22 mesh monel wire mesh technical parameter

roll width: 1.0-1.5m

roll length: 30m

22 mesh monel wire mesh application

Air vents

Liquid/gas filters

EMI/RFI shielding mesh

Fuel cells/electrodes

22 mesh plain weave monel wire mesh packing

Monel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.

MONEL® is a trademark of Special Metals Corporation.
