30 mesh phosphor bronze wire mesh

30 mesh plain weave phosphor bronze wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 30 mesh phosphor bronze wire mesh

30 mesh plain weave phosphor bronze wire mesh including 30 wires and openings of 1 inch Using 0.12-0.27mm diameter wire, by plain weaving, woven 30 mesh opening for 0.57-0.72mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

CuSn6

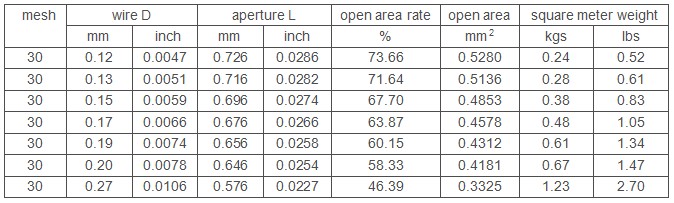

30 mesh phosphor bronze wire mesh technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

30 mesh phosphor bronze wire mesh application

Air vents.

Paper making

Filters

Strainers

30 mesh plain weave phosphor bronze wire mesh packing

Phosphor bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
