180 mesh plain weave stainless steel wire mesh

180 mesh plain weave stainless steel wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 180 mesh plain weave stainless steel wire mesh

Material

200 series : 201 202 205

300 series : 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series : 410 420 430

Common Grade	Characteristics
304	The standard "18-8" alloy (18% Cr, 8% Ni) for woven wire cloth. It resists outdoor rusting and high-temperature oxidation up to 800°C. Widely used for general industrial, commercial, and domestic mesh.
304L	A low-carbon version of 304. The lower carbon content makes the wire softer for easier weaving and significantly improves its welding characteristics.
316	Offers superior resistance to pitting corrosion from chlorides, brines, and halogens compared to 304. It features high creep strength at high temperatures and excellent durability at sub-zero temperatures. Widely used for chemical processing mesh.
316L	A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.
321	A titanium-stabilized version of 304. It resists intergranular corrosion and maintains higher strength at extreme temperatures where 304 or 304L would fail. Welded 321 should not be used in highly oxidizing environments.

180 mesh plain weave stainless steel wire mesh technical parameter

roll width: 1.0-2.0m

roll length: 30m

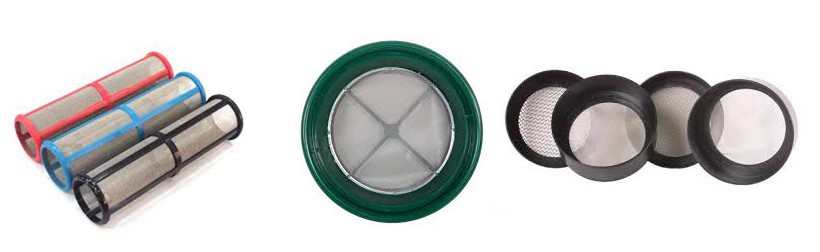

180 mesh plain weave stainless steel wire mesh application

Synthetic fiber spinning: fiber spinning mesh, synthetic fiber spin-pack micro-filters.

Plastic and polymer industry: plastic extrusion, plastic extrusion particles mesh,blown film screen changer mesh,extruder screen, filter discs

Pharmaceuticals: pharmaceutical powder preparation, pharmaceutical active ingredient powder sifters

Screening and sieving: test sieves, laboratories and filters, cement and lime selection, process screening and sieving, particle size distribution sieves,vibratory sieve shaker screen

Air intakes & fluid filtration:internal combustion engine air filter (typical pore size 60 - 90 micron), oil filter, hydraulic filters, internal combustion engine air filter, air intake screens

Botanical extraction& culinary clarification: dry sift sieve, food use, flour machine screening, mulled wine filter

180 mesh plain weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
