100x36mm Hexagonal Hole Expanded Metal

100x36mm Hexagonal Hole Expanded Metal

Standard

QB/T 3896-1999

Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter

Brief Introduction of 100x36mm Hexagonal Hole Expanded Metal

100x36mm hexagonal hole expanded metal is made from 4.5mm and 6mm thickness metal plate by uniformly slit and stretched,and after surface treatment,it becomes bright,corrosion resistance and long service life.Hexagonal hole expanded metal is evolved from the foundation of diamond hole expanded metal.The angle between straight edge and bevel edge is a little large.and hexagonal hole expanded metal have properties of toughness,impact resistance,beautiful appearance and other characteristics

Material

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

Steel:Q195, Q215, Q235

Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)

Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Surface Treatment

Galvanized: hot-dipped galvanized plate, electric galvanized plate

PVC coated: Colors in black, green, blue, white, or customized by clients’ request.

Powder coated: Black, white.

Anodized

Spray painting

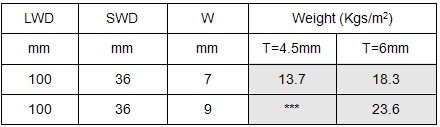

100x36mm hexagonal hole expanded metal specification parameter:

Size: 1x1m,1x2m,1.22x2.44m and so on.

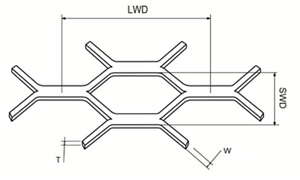

Note

LWD stands for long way of distance

SWD stands for short way of distance

T stands for mesh thickness

W stands for strand width

The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm³,

copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

100x36mm Hexagonal Hole Expanded Metal Application

large-scale heavy machinery and equipment protection

safety mesh for highway and railway

water power facilities

Reinforced for construction,highways and bridges.

Packing

Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
