0.6mm Slot Flat Wedge Wire Screen

Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief Description of 0.6mm Slot Flat Wedge Wire Screen

The 0.6mm slot flat wedge wire screen is a high-precision filtration component manufactured by WEB WIRE MESH.

0.6mm slot flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 0.6mm slot flat wedge wire screen is widely used for medium separation,food processing, gravel filter, water treatment, environmental protection, etc

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for flat wedge wire screen.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

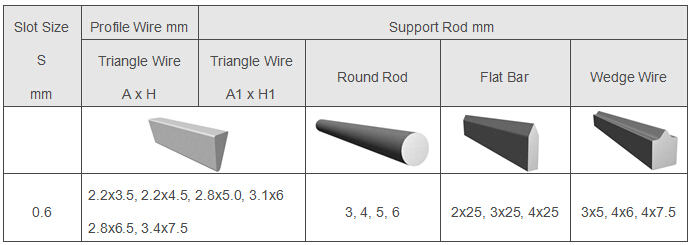

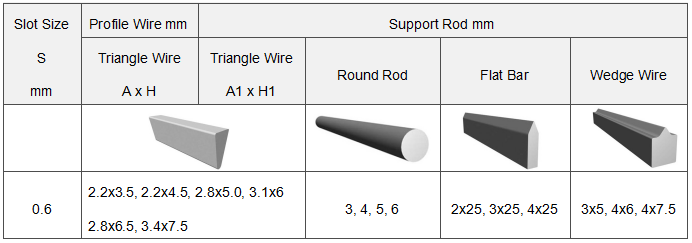

0.6mm Slot Flat Wedge Wire Screen Technical Parameter

For flat wedge wire screen, profile wire type is triangle wire in common.Support rod includes triangle wire,

round rod,flat bar,wedge wire.

Common size of flat wedge wire screen: 500x500mm-3000x3000mm,500x1000mm-2000x3000mm

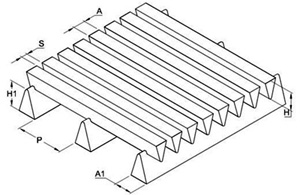

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

Flat Wedge Wire Screen Ending Types

To accommodate various installation methods, structural support frames, and equipment mounting requirements, our flat wedge wire screen panels can be customized with multiple ending and framing types, including but not limited to:

Standard Cut / Plain Ends

Flat Bar Frames

L-Profile Frames

Hook Strips / Tensioned Hooks

U-Profile Edges

0.6mm Flat Wedge Wire Screen Application

Wastewater & Effluent Treatment: municipal & industrial wastewater separation,sludge dewatering & thickening,intake screen & effluent filtration

Food and Beverage Processing: fruit & vegetable dewatering and separation ,brewing and distilling,lauter tuns and mash tuns

Petrochemical & Petroleum Refining:catalyst bed support & retention,oil-water & slurry separation

Mineral Processing & Vibrating Screen Equipment:vibrating screen decks & shakers,mineral slurry dewatering



Why Choose V-Shaped Profile Wire

Non-Clogging Design: The V-shaped profile cross-section creates a slot that is narrow at the top and wider at the bottom. This geometric design allows particles to pass through easily, drastically reducing clogging and ensuring a smooth, uninterrupted filtration process.

Durability: Delivers exceptional wear and corrosion resistance for demanding industrial environments.

Packing

Flat wedge wire screen should be packed firmly and securely. When packing, flat wedge wire screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
