Brief Description of 0.3mm Slot Flat Wedge Wire Screen

The 0.3mm slot flat wedge wire screen is a high-precision filtration component manufactured by WEB WIRE MESH.

0.3mm slot flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.0.3mm slot flat wedge wire screen is widely used for mash tun,filtration tank,liquid and solid separation,beer and food processing.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for flat wedge wire screen.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

0.3mm Slot Flat Wedge Wire Screen Technical Parameter

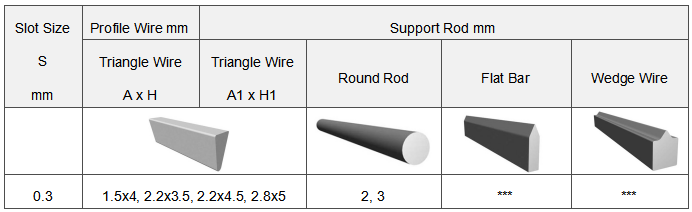

For flat wedge wire screen, profile wire type is triangle wire .Support rod includes triangle wire, round rod.

Common size of flat wedge wire screen: 500x500mm-3000x3000mm,500x1000mm-2000x3000mm

Note

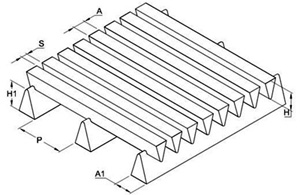

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod.

Support Rod Distance (P): The distance between each support rod.

Flat Wedge Wire Screen Ending Types

To accommodate various installation methods, structural support frames, and equipment mounting requirements, our flat wedge wire screen panels can be customized with multiple ending and framing types, including but not limited to:

Standard Cut / Plain Ends

Flat Bar Frames

L-Profile Frames

Hook Strips / Tensioned Hooks

U-Profile Edges

0.3mm Slot Flat Wedge Wire Screen Application

Brewing Industry：Mash & Lauter Tuns，false bottom screen

Food Processing：Filtration Tanks, clarifying juices, processing wastewater

Liquid-Solid Separation: dewatering, straining, media retention

Why Choose V-Shaped Profile Wire

Non-Clogging Design: The V-shaped profile cross-section creates a slot that is narrow at the top and wider at the bottom. This geometric design allows particles to pass through easily, drastically reducing clogging and ensuring a smooth, uninterrupted filtration process.

Durability: Delivers exceptional wear and corrosion resistance for demanding industrial environments.

Packing

Flat Wedge wire screen should be packed firmly and securely. When packing, flat wedge wire screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
