Brief Description of 25mm Diameter Wedge Wire Screen Tube

The 25mm diameter wedge wire screen tube is a high-precision filtration component manufactured by WEB WIRE MESH.

25mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 25mm diameter wedge wire screen tube’s sieve slot range from 0.05 to 0.5mm. It is widely used in oil-water separation,water treatment,sugar process,rotating pulping.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

25mm Diameter Wedge Wire Screen Tube Technical Parameter

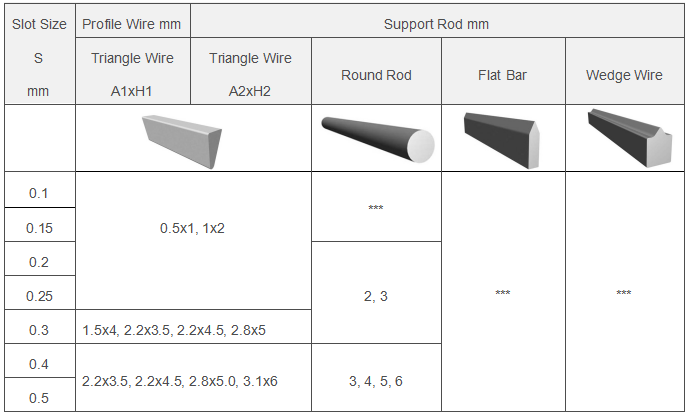

For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

round rod.

The length of wedge wire screen tube is 0.3m,0.6m,1m.

note

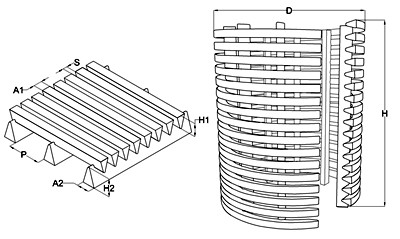

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod.

Support Rod Distance (P): The distance between each support rod.

Wedge Wire Screen Tube Ending Types

To accommodate various installations and equipment connections, our 25mm wedge wire screen tubes can be customized with multiple ending types, including but not limited to:

Standard Cut Ends

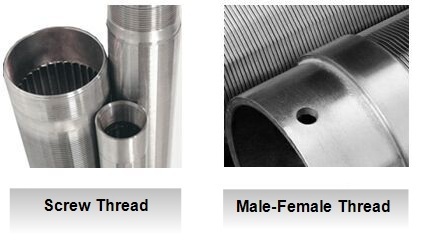

Threaded Nipple / Fittings (Male & Female)

Flanged Ends

Closed Ends / End Caps

25mm Diameter Wedge Wire Screen Tube Application

Oil-water separation

Water treatment:Resin Traps , Media Collectors,Ion Exchangers, Clay and Sand

Filtration and Carbon Towers

Sugar Process

Rotating Pulping

Food & Beverage: Inline Process Strainers

Chemical & Refining: Core Filters,Candle Filters

Environmental Engineering:Monitoring Well Screens

Why Choose V-Shaped Profile Wire

Non-Clogging Design: The V-shaped profile cross-section creates a slot that is narrow at the top and

wider at the bottom. This geometric design allows particles to pass through easily, drastically

reducing clogging and ensuring a smooth, uninterrupted filtration process.

Durability: Delivers exceptional wear and corrosion resistance for demanding industrial environments.
