10-3/4”wire wrapped screen

10-3/4” wire wrapped sand control screen

Standard

SY/T 6916-2012

Anping Web Wire Mesh Co.Ltd. Sand Control Screen Process and Technical Parameters

Brief description of 10-3/4” wire wrapped sand control screen

10-3/4” wire wrapped sand control screen is made of 10-3/4” base pipe, 290mm outside diameter of stainless steel wire wrapped screen and support bars. With high filter precision, V-type cross-sectional structure avoid clogging and ensure smooth flow, sturdy structure,high porosity, accurate gaps size. It can be used in vertical wells, deviated well, horizontal wells for gravel packing and sand control.

Material

Stainless steel : 304, 304L, 316, 316L

Grade	Characteristics
SS 304	The most cost-effective option with excellent mechanical strength and wear resistance against abrasive sand particles.
SS 304L	The low-carbon variant of 304. It prevents carbide precipitation during welding .It is Crucial for sand screens involving extensive welding,ensuring weld joints do not become structural weak points or corrosion targets.
SS 316	Contains 2-3% Molybdenum, which vastly improves resistance to chloride pitting, crevice corrosion, and acidic downhole environments.Maintains high tensile strength and collapse resistance under severe subsurface pressure.
SS 316L	Combines the superior pitting resistance of 316 with the weld-integrity benefits of low carbon.It guarantees maximum immunity to intergranular corrosion at heat-affected weld zones while operating in harsh, corrosive, and high-temperature environments.

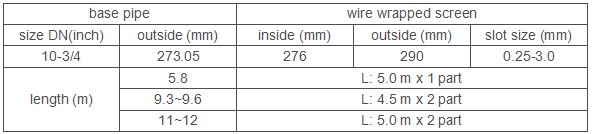

10-3/4” wire wrapped sand control screen technical parameter

10-3/4” wire wrapped sand control screen application

Openhole standalone completions

Secondary liner completions

Cased and perforated completions

Horizontal, deviated, and vertical wells

Producer, injector, and infill wells

medium to high velocity wells

Packing

Sand control screen should be packed firmly and securely. When packing, sand control are appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
