2-3/8”perforated sand screen

Hot Products
Related Knowledge
Introduction

Pipe Diameter:  2-3/8”
Type:  perforated screen
Material:  stainless steel 304, 304L, 316, 316L
Pipe Length:  3m,6m,12m
Application:  vertical wells, deviated well, horizontal wells, cased hole and open hole wells in kinds of oil, gas, water wells and sand control industry

Add Inquiry
Description

2-3/8”perforated sand control screen


Standard

SY/T 6916-2012

Anping Web Wire Mesh Co.Ltd. Sand Control Screen Process and Technical Parameters


Brief description of 2-3/8”perforated sand control screen

2-3/8” perforated sand control screen is made of 2-3/8” base pipe, the max 66mm outside diameter of stainless steel perforated screen and support rings. With precision controllable aperture and excellent corrosion resistance, the good ability of the overall strength and resistance to deformation, high density and low flow resistance, it can be used in vertical wells, deviated well, horizontal wells, cased hole and open hole wells, and kinds of oil, gas, water wells and sand control industry


Material

Stainless steel : 304, 304L, 316, 316L

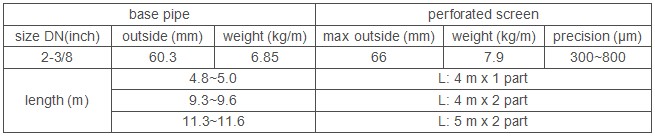

2-3/8”perforated sand control screen technical parameter





Note

Perforated screen slot size: between 20mm to 0.7mm

Perforated screen type: bridge slotted screen, round hole screen etc.


2-3/8”perforated sand control screen application

Vertical wells, deviated well and horizontal wells

Cased hole and open hole wells

Oil, gas, water wells


Packing

Sand control screen should be packed firmly and securely. When packing, sand control are appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
