DN3 inch conical strainer

DN3 inch conical strainer

Standard

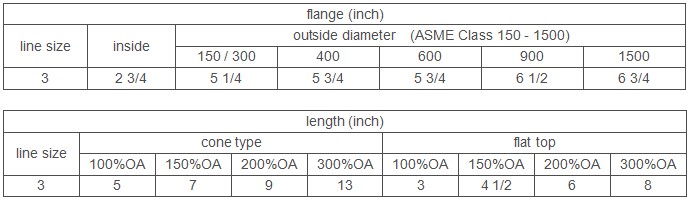

Anping Web Wire Mesh Co.Ltd. Conical Strainer Process and Technical Parameters

Brief description of DN3 inch conical strainer

DN3 inch conical strainer is made of metal mesh by CNC punch pressing or cutting into sector pieces , after combination , welding flanges and handle, is a coarse filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and many models, can produce a variety of specifications of the conical strainer, uniform mesh , large filtration area ,  low resistance , renewable ( repeatedly) etc., it is widely used in oil, gas , water treatment and other fields .

Material

Stainless steel mesh: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel mesh: Q195, Q235, Q275

Expanded metal: standard diamond hole, flatten diamond hole

Perforated metal : round hole

Type

Cone type

Flat top type

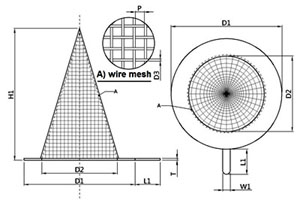

Note:

D1,D2,D3 stand for diameter

L1 stands for length

T stands for thickness

W1 stands for width

OA stands for open area

DN3 inch conical strainer application

Oil filters

Water filters

Gas Filters

Pipe filters

Packing

Conical strainer should be packed firmly and securely. When packing, conical strainer are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
