199x76 oval filter disc

199x76mm oval filter disc

Standard

Anping Web Wire Mesh Co.Ltd. Filter Discs Process and Technical Parameters

Brief description of 199x76 oval filter disc

199x76mm oval filter disc is made of mesh and punch die by CNC punch pressing into pieces , after combination, edging, is a filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and CNC punching equipment, can produce a variety of specifications of the single , double and multiple filter disc , uniform mesh , mesh solid , pressure is strong , renewable ( repeatedly) etc., it is widely used in water, oil, gas , rubber, plastics and other fields .

Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel : Q195, Q215, Q235

Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5, CuSn6

Aluminum: 1050, 5052, 5056

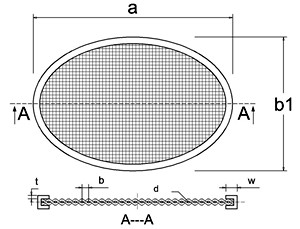

Structure

199x76 oval filter disc application

Oil filters

Water filters

Gas Filters

Food process

Extruder equipment

199x76mm oval filter disc packing

Filter Discs should be packed firmly and securely. When packing, filter discs are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
