DN4200 wire mesh demister

Hot Products
Related Knowledge
Introduction

Diameter:  4200mm
Thickness:  100mm,150mm
Grating:  None,2*12.7,3*25,4*25mm
Material:  Stainless Steel,Nickel,Monel,PP,PE
Shape:  Round
Application:  widely used in tower of petroleum, chemical , environmental protection and other areas etc.

Add Inquiry
Description

DN4200mm wire mesh demister pads


Standard

HG/T 21618-1998 HG/T 21586-1998

Anping Web Wire Mesh Co.Ltd. Wire Mesh Demister Pads Process and Technical Parameters


Brief description of DN4200mm wire mesh demister pads

DN4200mm wire mesh demister pads are made up knitted gauze pad and support grid of two parts, It is a gas-liquid separator , when the vapor through demister pads it can remove the water mist , its mainly application for separation of diameter greater than 3um ~ 5um droplets . We have a complete knitted mesh and demister pads production lines and many years production of experience , we can produce standard and non-standard specifications of the demister , it is widely used in tower of petroleum, chemical , environmental protection and other areas .


Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Nickel: nickel, nickel alloy2080, Monel400, Monel600

PP: Polypropylene

PE: Polyethylene

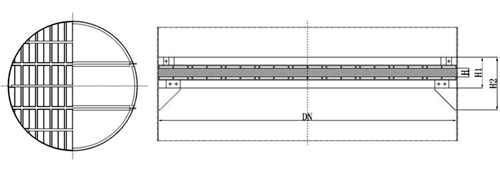

DN4200mm wire mesh demister pads technical parameter



Note:

D stands for nominal diameter

H stands for height or thickness of demister pads

The weight is calculated according to stainless steel,stainless steel density is 7.93g/cm3,nickel density

is 8.90g/cm3,PP or PE density is 0.92g/cm3


DN4200mm wire mesh demister pads application

Evaporator

Refining vacuum tower

Gas processing

Steam drums

Absorber

Scrubbers

Absorption columns

Distillation columns


Packing

Demister Pads should be packed firmly and securely. When packing, demister pads are appears in blocks.They are wrapped with plastic film and outside with wooden cases or wooden pallets.We can also pack according to customer requirements.
