25x12mm Diamond Hole Expanded Metal

Hot Products
Related Knowledge
Introduction

Shape:  diamond
LWDxSWD:  25x12mm
Thickness:  0.8mm
Strand Width:  0.4-4mm
Material:  Stainless Steel,Steel,Copper,Aluminum,Nickel
Size:  1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Application:  car grilles,filter cartridge,furniture supplies

Add Inquiry
Description

25x12mm Diamond Hole Expanded Metal


Standard

QB/T 3896-1999

Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter


Brief Description of 25x12mm Diamond Hole Expanded Metal

25x12 mm aperture middle expanded metal is made from 0.8mm thickness metal plate by uniformly slit and stretched,forming 25x12 mm diamond opening in the metal sheet. The mesh is with features of light-weight,small opening,thin plate and long service life. It is widely used for car grilles,filter cartridges,barbecue mesh,speaker grilles,crafts and decoration,children seat,furniture and office supplies,ceiling roof mesh and so on.

Material

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

Steel:Q195, Q215, Q235

Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)

Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600


Surface Treatment

Galvanized: hot-dipped galvanized plate, electric galvanized plate

PVC coated: Colors in black, green, blue, white, or customized by clients’ request.

Powder coated: Black, white.

Anodized


Form Types

Expanded metal is generally formed in standard(raised) type or flattened type.


Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.
Flattened expanded metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

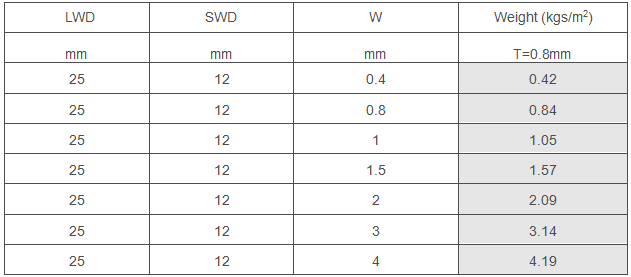

25x12mm Diamond Hole Expanded Metal Technical Parameter



Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m

Note:

LWD stands for long way of distance

SWD stands for short way of distance

T stands for mesh thickness

W stands for strand width

The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm3,

copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3


25x12mm Diamond Hole Expanded Metal Application

Ceilings

highway fence

sports venues fence

foot tanker

working platforms, escalators, walkway In heavy machinery and boilers, oil mines, motorcycles


Packing

Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film. We can also pack according to customer requirements.
