10x6mm Diamond Hole Expanded Metal

10x6mm Diamond Hole Expanded Metal

Standard

QB/T 3896-1999

Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter

Brief Description of 10x6mm Diamond Hole Expanded Metal

10x6 mm aperture small expanded metal is made from 0.4-0.8mm thickness metal plate by uniformly slit and stretched,forming 10x6 mm small diamond opening in the metal sheet. The mesh is with light-weight,reinforcing properties,uniform mesh connection,processing capability,beautiful surface and practical features.It is widely used for car grilles,filter cartridges,speaker grilles,crafts and decoration,farming fences and other usages.

Material

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

Steel:Q195, Q215, Q235

Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)

Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Surface Treatment

Galvanized: hot-dipped galvanized plate, electric galvanized plate

PVC coated: Colors in black, green, blue, white, or customized by clients’ request.

Powder coated: Black, white.

Anodized

Form Types

Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

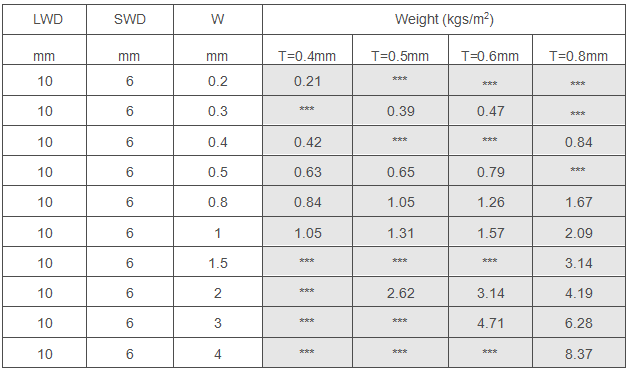

10x6mm Diamond Hole Expanded Metal Technical Parameter

Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m

Note:

LWD stands for long way of distance

SWD stands for short way of distance

T stands for mesh thickness

W stands for strand width

The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm³,

copper or nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

10x6mm Diamond Hole Expanded Metal Application

car grilles

filter cartridges

speaker grilles

crafts and decoration

farming fences and other usages.

Packing

Expanded metal should be packed firmly and securely.When packing,expanded metal appears in roll type and

flat type.They are packed in wooden pallets generally.Each pallet load 1 ton-2.5 tons and wrapped with plastic film.We can also pack according to customer requirements.
