2x1mm Diamond Hole Expanded Metal

2x1mm Diamond Hole Expanded Metal

Standard

QB/T 3896-1999

Anping Web Wire Mesh Co.,Ltd. Expanded Metal Process and Technical Parameter

Brief Description of 2x1mm Diamond Hole Expanded Metal

2x1 mm aperture micro expanded metal is made from 0.1mm and 0.2mm thickness metal plate by uniformly slit and stretched,forming 2x1 mm micro diamond opening in the metal sheet. For its uniform small openings and flat surface,it is widely used for headphones grille, speaker grille, phone speaker grille, battery mesh and other filtration support etc.

Material

Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321

Copper:red copper plate (C10200,C11000),brass plate(CuZn40,CuZn37,CuZn35,CuZn30,CuZn20,CuZn5)

Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)

Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Materials	Characteristics
Stainless steel 304	Standard grade with high rigidity,tensile strength and corrosion resistance; resists tearing during expanding. Ideal for general industrial grates, facades, and filtration support.
Stainless steel 304L	Low-carbon version; reduces work-hardening and prevents micro-cracks at the mesh joints (knuckles). Offers superior secondary welding and fabrication.
Stainless steel 316	Molybdenum-bearing alloy with exceptional resistance to pitting in chloride, brine, and acidic environments. Best for heavy-duty marine and chemical grates.
Stainless steel 316L	Combines 316's corrosion resistance with low-carbon ductility. Eliminates post-weld intergranular corrosion, ensuring maximum lifespan under harsh conditions.
Steel	Highly economical with excellent malleability for raised/flat types. High strength makes it for industrial flooring and security fencing (when coated).
Copper	Highly ductile and easy to expand into fine mesh. Features superb electrical/thermal conductivity and a premium look for RFI shielding and decorative architecture.
Brass	Harder and more abrasion-resistant than pure copper due to zinc content. Holds its shape exceptionally well under load-bearing stress for decorative grilles.
Aluminum	Lightweight with an excellent strength-to-weight ratio. Highly malleable and corrosion-resistant, making it perfect for architectural ceilings and sunshades.
Nickel	Specialized alloy with outstanding resistance to caustic alkalis and high heat. Widely used for precision electrode substrates in fuel cells and batteries.

Surface Treatment

Expanded metal can undergo various surface treatments to improve its durability and appearance:

Galvanizing

Powder Coating

Anodizing

Painting

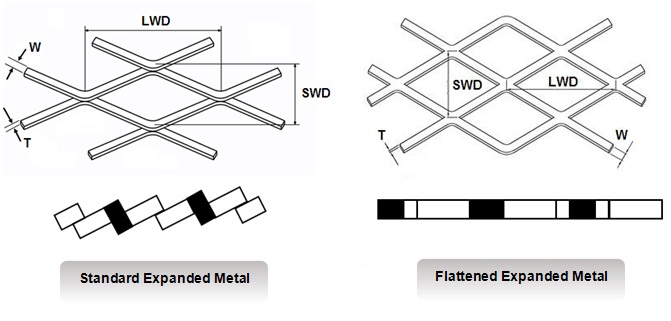

Form Types

Expanded metal is generally formed in standard(raised) type or flattened type.

Standard Expanded Metal is directly slit and stretched by punching machines without other processing,The strand width and bond come in with an angle with the plate surface. This kind structure increase the strength and hardness of expanded metal,it also brings better anti-slipping and reinforcing performance.

Flattened expanded metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

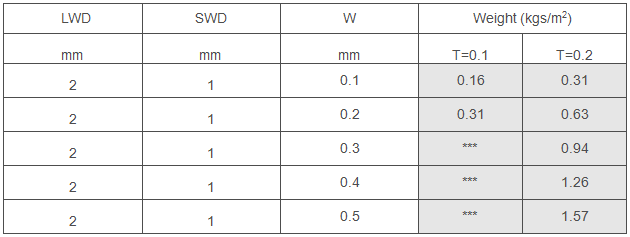

2x1mm Diamond Hole Expanded Metal Technical Parameter

Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m

Note:

LWD stands for long way of distance

SWD stands for short way of distance

T stands for mesh thickness

W stands for strand width

The weight is calculated according to stainless steel. Stainless steel density is 7.93g/cm³,copper or

nickel density is 8.90g/cm³,aluminum density is 2.73g/cm³

Battery production: Li-Ion rechargeable battery,fuel cell,zinc air batteries ,automotive battery,standard starter batteries,novel anode for Li-ion polymer batteries,Li-ion Batteries,Lithium Ion anode

Electromagnetic shielding: precision electronics, military hardware, and medical equipment enclosures to block Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI)

Filtration & separation:support mesh, protective outer layer or inner core for liquid and air filters,precision strainers,hydraulic filter,oil filters

Acoustics and electronics:microphone & speaker grilles,precision earphones,audio speakers,speaker covers
