20mm double intermediate crimped mesh

20mm double intermediate crimped wire mesh

Standard

GB/T 13307-1991

Anping Web Wire Mesh Co.,LTD Double Intermediate Crimped Weave Process and Technical Parameter

Brief description of 20mm double intermediate crimped mesh

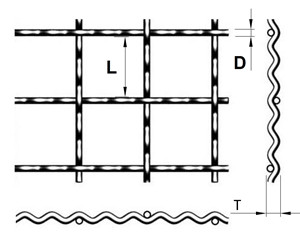

20mm double intermediate crimped wire mesh Using 2.0-4.0mm diameter wire, by double intermediate crimped weaving, woven 20mm opening for solid particles. This wire diameter and mesh with ratio reasonable,flat surface, strong wear resistance and firm structure.

Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel: Q195 Q235 Q275 10 15 15Mn 20 20Mn 30 30Mn 40 40Mn 45 45Mn 50 50Mn 60 60Mn 65 65Mn 70

Copper: CuZn40 CuZn37 CuZn35 CuZn30 CuZn20 CuZn5 CuSn6 C10200 C11000

Aluminum: 1050 1060 1100 5052 5056

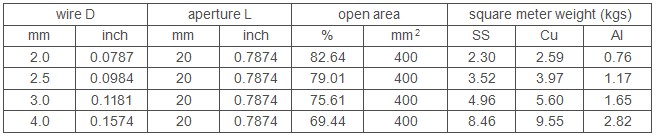

20mm double intermediate crimped mesh technical parameter

roll width: 1.0-4.0m

roll length: 15.0m,30.0m,60.0m,90.0m

20mm double intermediate crimped mesh application

Machine guard

Architecture

Decorative grill

Vibrating Screens

20mm double intermediate crimped wire mesh packing

Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases

or wooden pallet.
