20 mesh aluminum alloy wire mesh

20 mesh plain weave aluminum alloy wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 20 mesh aluminum alloy wire mesh

20 mesh plain weave aluminum alloy wire mesh including 20 wires and openings of 1 inch Using 0.17-0.30mm diameter wire, by plain weaving, woven 20 mesh opening for 0.9-1.1mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

5052 5056 5083

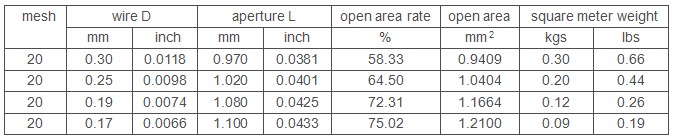

20 mesh aluminum alloy wire mesh technical parameter

roll width: 1.0-1.5m

roll length: 30m

20 mesh aluminum alloy wire mesh application

Filter discs

Strainers

Air vents

Shielding

20 mesh plain weave aluminum alloy wire mesh packing

Aluminum alloy wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
