317X2100 mesh twill dutch stainless steel mesh

317X2100 mesh twill dutch weave stainless steel wire mesh

Standard

JB/T 5979-92

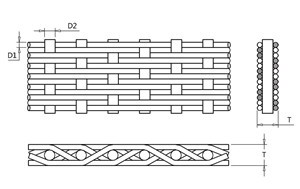

Anping Web Wire Mesh Co.,LTD Twill Dutch Weave Process and Technical Parameter

Brief description of 317X2100 mesh twill dutch weave stainless steel wire mesh

317X2100 mesh twill dutch weave stainless steel wire mesh.Using 0.036X0.025mm diameter wire, by twill dutch weaving, woven 317X2100 mesh opening for 5μm liquid or gas filter.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

300 series: 316L

317X2100 mesh twill dutch weave stainless steel wire mesh technical parameter

roll width: 1.0-1.6m

roll length: 30m

317X2100 mesh twill dutch weave stainless steel wire mesh application

Filtering

Diffusing

317X2100 mesh twill dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
