45X250 mesh plain dutch weave stainless steel mesh

45X250 mesh plain dutch weave stainless steel wire mesh

Standard

JB/T 5979-92

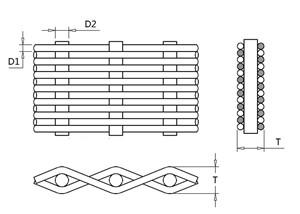

Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter

Brief description of 45X250 mesh plain dutch weave stainless steel wire mesh

45X250 mesh plain dutch weave stainless steel wire mesh. Using 0.16X0.11mm diameter wire, by plain dutch weaving, woven 45X250 mesh opening for 56μm liquid or gas filter material.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

200 series: 201 202 205

300 series: 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series: 410 420 430

45X250 mesh plain dutch weave stainless steel wire mesh technical parameter

roll width: 1.0-1.6m

roll length: 30m

45X250 mesh plain dutch weave stainless steel wire mesh application

Filtering

Diffusing

45X250 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
