12X64 mesh plain dutch weave stainless steel mesh

12X64 mesh plain dutch weave stainless steel wire mesh

Standard

JB/T 5979-92

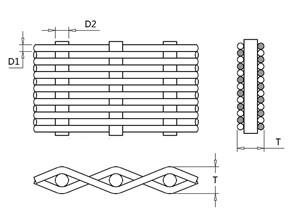

Anping Web Wire Mesh Co.,LTD Plain Dutch Weave Process and Technical Parameter

Brief description of 12X64 mesh plain dutch weave stainless steel wire mesh

12X64 mesh plain dutch weave stainless steel wire mesh use 0.56X0.40mm diameter wire, by plain dutch weaving, woven 12X64 mesh opening for 210μm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better

Material

200 series : 201 202 205

300 series : 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series : 410 420 430

Common Grade	Characteristics
304	The standard "18-8" alloy (18% Cr, 8% Ni) for woven wire cloth. It resists outdoor rusting and high-temperature oxidation up to 800°C. Widely used for general industrial, commercial, and domestic mesh.
304L	A low-carbon version of 304. The lower carbon content makes the wire softer for easier weaving and significantly improves its welding characteristics.
316	Offers superior resistance to pitting corrosion from chlorides, brines, and halogens compared to 304. It features high creep strength at high temperatures and excellent durability at sub-zero temperatures. Widely used for chemical processing mesh.
316L	A low-carbon version of 316. It provides better wire flexibility for weaving and eliminates the risk of intergranular corrosion after welding.
321	A titanium-stabilized version of 304. It resists intergranular corrosion and maintains higher strength at extreme temperatures where 304 or 304L would fail. Welded 321 should not be used in highly oxidizing environments.

12X64 mesh plain dutch weave stainless steel wire mesh technical parameter

roll width: 1.0-1.6m

roll length: 30m

12X64 mesh plain dutch weave stainless steel wire mesh application

Chemical and pharmaceutical industries: filter liquid chemicals, acidic solutions, and sterile pharmaceutical products such as vaccines and APIs (Active Pharmaceutical Ingredients).

Seawater processing: filtering and purifying seawater in applications such as seawater cooling systems, fire suppression systems, and marine exhaust systems.

Oil and gas: particle filtration in the oil and gas industry, including particle separation in piping systems, heat exchangers, and pollution control equipment.

Transportation and aerospace: aircraft and vehicle components.

Food and beverage processing: purification of food and beverage products with precise particle retention

12X64 mesh plain dutch weave stainless steel wire mesh packing

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
