0.8mm wedge wire basket


Material:  304 304L 316 316L 321
Slot Size:  0.8mm
Profile Wire:  1.5x4, 1.8x3.0, 2.2x3.5, 2.2x4.5 2.2x5, 2.3x3.8mm etc
Support Rod Type:  triangle wire,round rod,flat bar,wedge wire
Basket Diameter:  500-1530mm
Basket Height:  300-800mm
Application:  mining,coal,oil,chemical fertilizers,food,environmental protection and other industries as oil filter mesh,salt screen mesh

Add Inquiry

0.8mm slot wedge wire screen basket


JB/T 4265-1999

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Parameter

Brief Introduction

Wedge wire screen basket material generally includes stainless steel 304,316,316L and so on.Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. Wedge wire screen basket is the key component of centrifuge dewatering equipment ,mainly used for dewatering in centrifugal dewatering machine as high-speed rotating component.When working, the screen basket not only absorb shock loads, but also bear a strong impact from coal and water, so the strength and accuracy requirements are relatively high for screen basket.Wedge wire screen basket slot size is generally 0.3 ~ 1mm, other sizes can also be customized. The wedge wire basket is connected with main machine as a whole part through the hole of top flange or down flange with bolt. Centrifuge wedge wire screen basket is widely used in many industries for screening,filtration,dehydration,mud and other operations. It has high strength, rigidity and load carrying capacity,can be made into various shapes rigid screening filter device. The product is processed by advanced welding technology.The slot screen surface has the highest screening efficiency,possessing the highest screening efficiency,the strongest earthquake tensile strength,the minimum maintenance requirements and the longest service life.


Stainless Steel:304 304L 316 316L 321

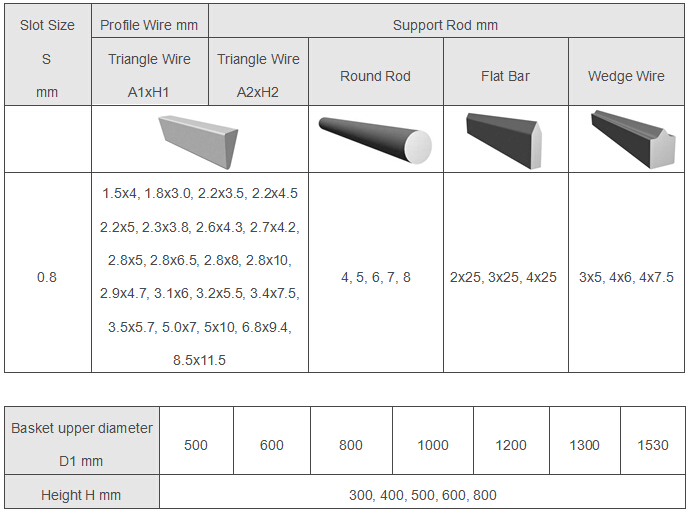

Technical Parameter


Wedge wire screen basket is widely used in mining,coal,oil,chemical fertilizers,food,environmental protection and other industries as slot screen mesh, oil filter mesh, salt screen mesh.


Wedge wire screen basket should be packed firmly and securely. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets..We can also pack according to customer requirements.
