273mm Wedge Wire Tube


Tube Diameter:  273mm
Slot Size:  0.05 to 2.5mm
Material:  304 304L 316 316L 321
Profile Wire:  0.5x1,1x2,1.5x4,2.2x3.5,2.2x4.5,2.8x5,3.1x6mm etc
Support Rod Type:  triangle wire,round rod,flat bar,wedge wire
Tube Length:  0.3m,0.6m,1m,2m,3m,6m,12m
Application:  deep well,wells and oil Wells,oil and water reservation,sand control,oil and gas filtration

Add Inquiry

273mm Diameter Wedge Wire Screen Tube


Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.

Brief description

273mm diameter wedge wire screen tube is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. This screen tube is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 273mm diameter wedge wire screen tube’s sieve slot range from 0.05 to 2.5mm.It is widely used with deep well,submersible pumps,and water treatment equipment for environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment. Or the petroleum industry: oil filtration and recycling end-product of chemical organic solution of acid, alkali liquid filtration, alcohol and other filtering. And it can also be used for hydro-geological exploration, drilling, construction,reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources


Stainless Steel:304 304L 316 316L 321

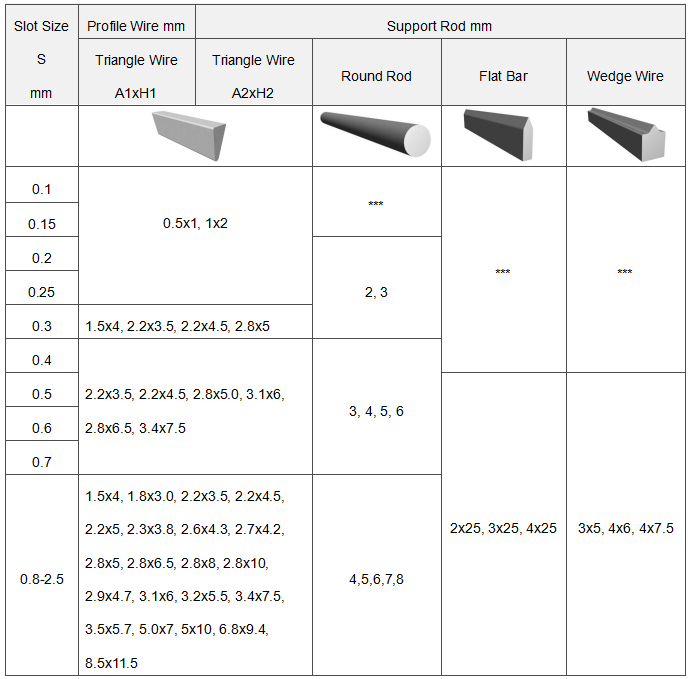

273mm diameter wedge wire screen tube technical parameter

u For wedge wire screen tube, profile wire type is generally triangle wire.Support rod includes triangle wire,

       round rod,flat bar,wedge wire.

u The length of wedge wire screen tube is 0.3m,0.6m,1m,2m,3m,6m,12m.

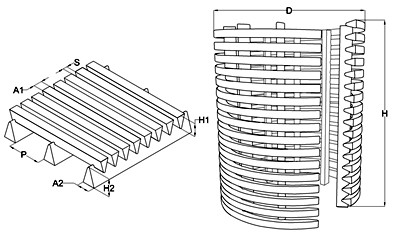

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.

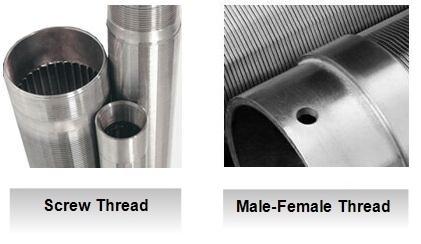

Wedge wire screen tube ending types


u deep well

u wells and oil wells

u oil and water reservation

u oil tubing

u sand control

u oil and gas filtration


Wedge wire screen tube should be packed firmly and securely. When packing, wedge wire screen tube appears in pipes. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
